Awesome Original RodSpeakers !

**Altec Best** · May 19th, 2015, 04:14 AM

Here is a pair of original Rodspeakers for sale ! Supposed to be original but who knows ? Looks legit.

"The Rod Speakers" Vintage One of A Kind Altec Speakers Only Other Pair | eBay

1original

THE Rod Speakers

These are a pair of vintage Altec component speakers custom built for Rod Stewart's house, and are the only other pair in in existence.

You are bidding on a one of a kind speaker system just like the system Rod Stewart had in his house, built and designed by Top Audio Consultant Rick Riccio. The Speakers are setup to be BI ?amped and are a wonderful sounding speaker system whether listening to Rock n Roll, jazz or even classical Music.
They come with grill frames that you can have any choice of grill cloth put on them by you or just leave them off like Rod did.
The attached article was run in all these magazines by Altec: Rolling Stone, People, GQ, and Penthouse .
Also comes with a framed ad print signed by the designer.

SPECIFICATION SHEET - ROD SPEAKER

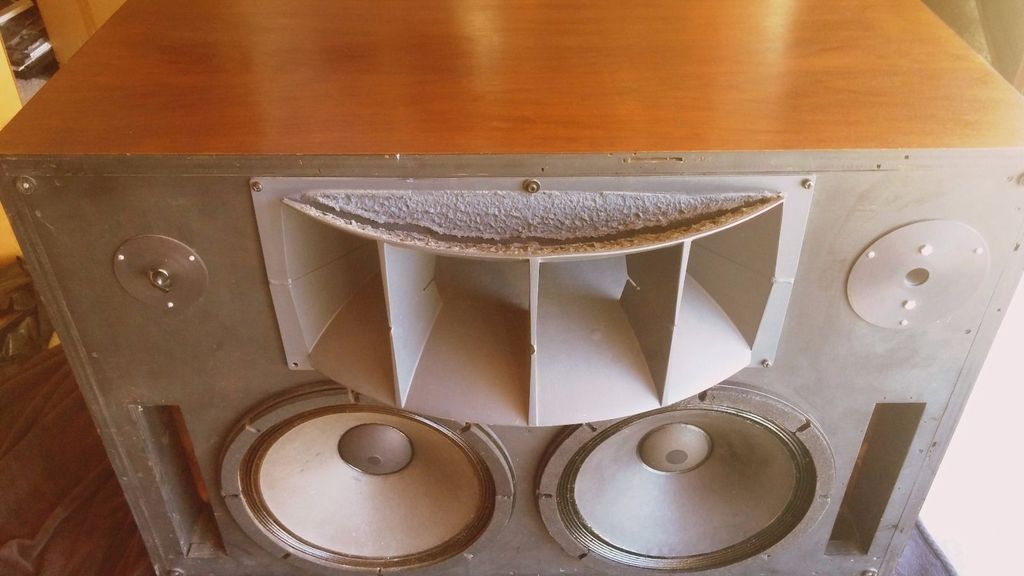

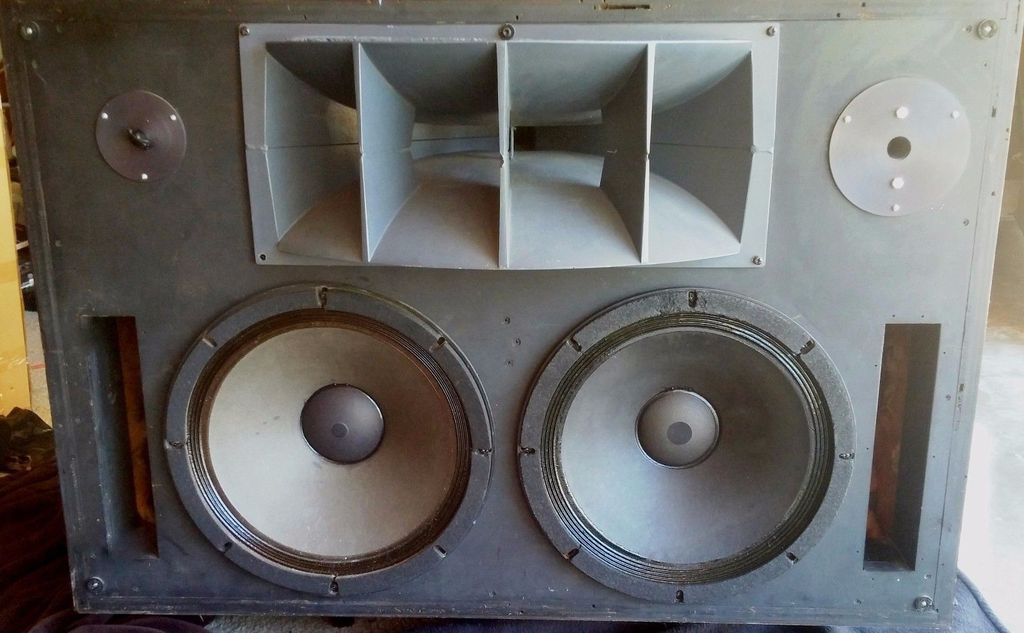

The Rod Speaker is a Three-Way Bi-Amplified Speaker System Utilizing a Vented Enclosure
Components: 2 - 15" Bass Drivers Altec 416-8a

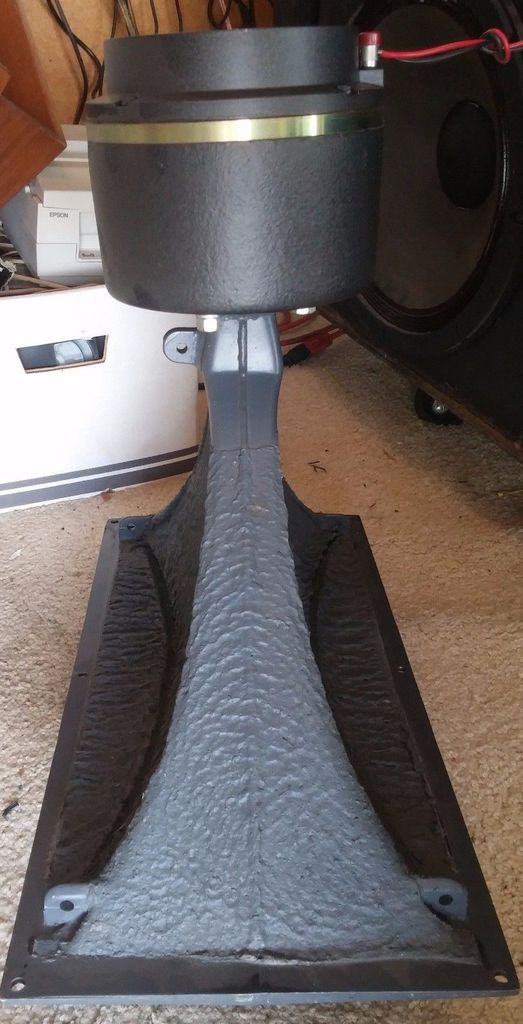

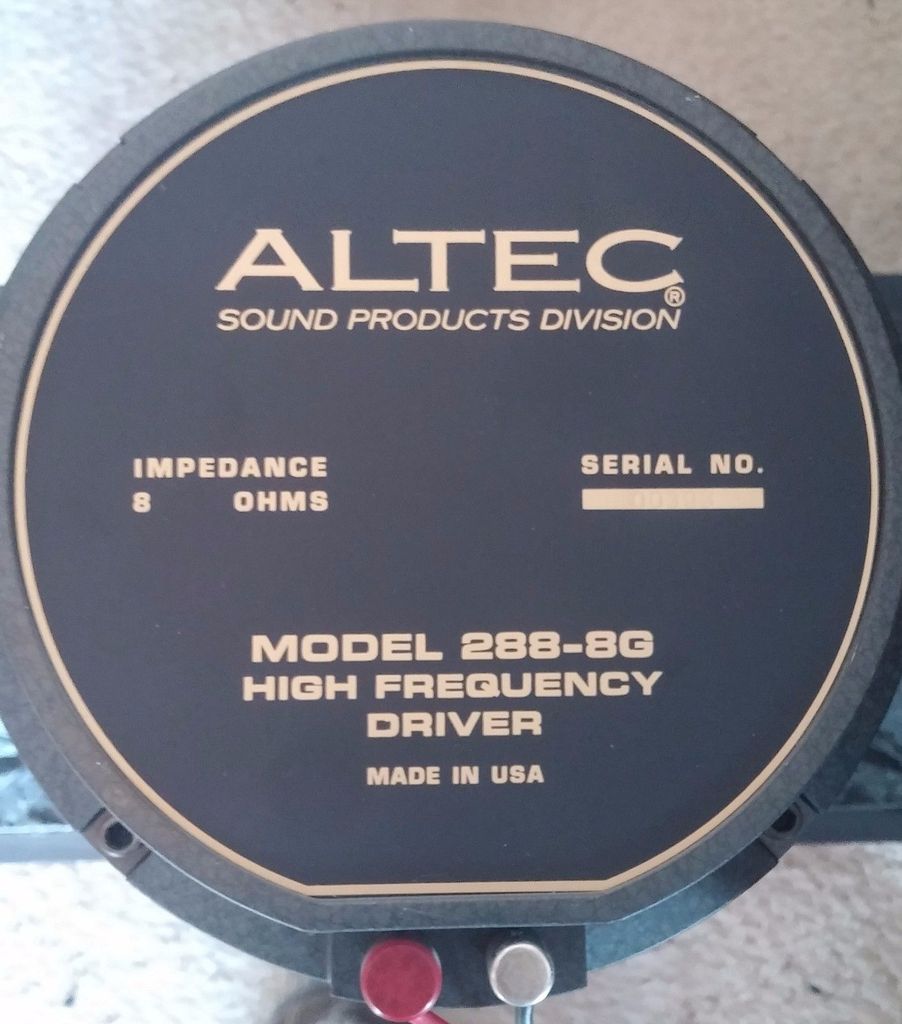

1 - 1 3/4" Compression Driver Mounted to a 90? Sectoral Horn Altec 288-8g on a 511a Horn

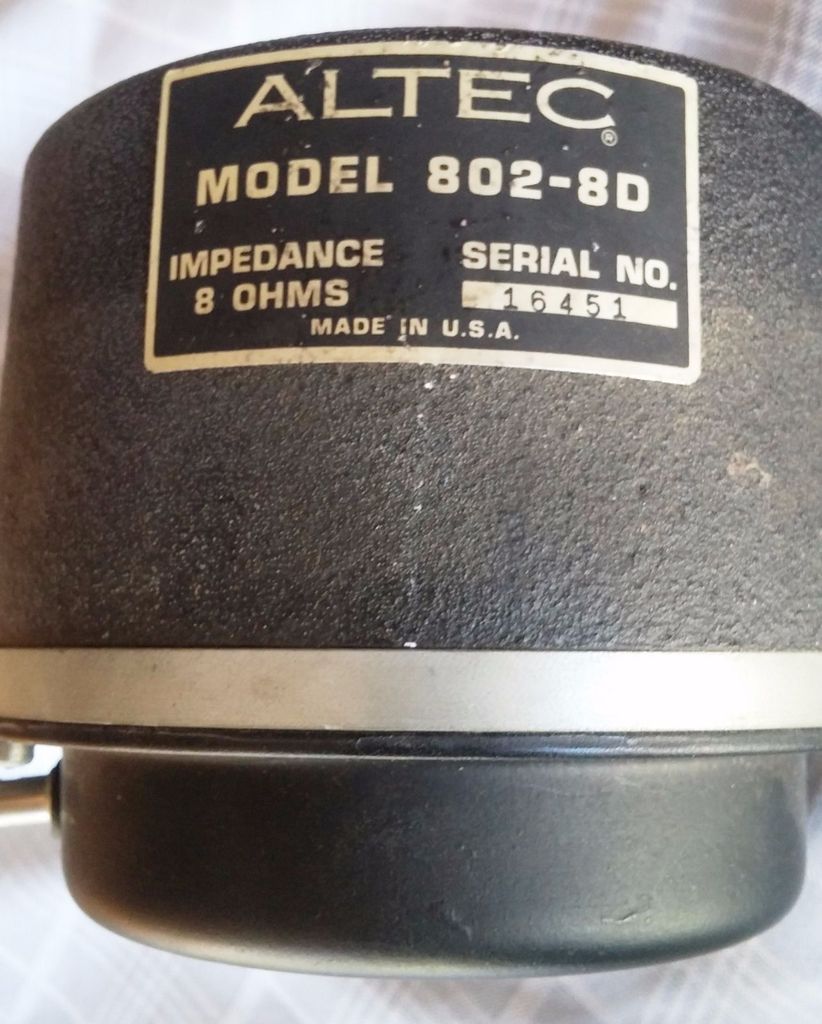

1 - 3/4" Compression Driver , Altec 802-8d
Bass Drivers Impedance - 4 ohms
Compression Drivers Impedance - 4 ohms
Crossover Frequencies - 800 Hz - 6.8 KHz
Frequency Response -30 Hz - 18 KHz
Dispersion - 60^? Vertical, 90^? Horizontal
Power Rating - Bass Drivers - 200 watts pink noise
Compression Drivers - 40 watts pink noise Finish - Walnut,
Dimensions - 44" wide x 32" deep x 30" high
Weight - 250 pounds

**Old Guy** · May 19th, 2015, 08:03 AM

Hmmm- would have to question the credentials of a designer who thinks a 288 is a " 1 3/4" Compression Driver"

An aside... Rick Riccio mixes the soundtrack for The Simpsons....

**oface1** · May 19th, 2015, 08:19 AM

I saw that too OG, and was scrathing my head.....

**juniper** · May 19th, 2015, 08:45 AM

Awesome AB!!! been waiting to see a pair of these for years...... Is it my computer, or do the walls inside the vents on the front motor board an inch and a quarter thick?

**VolvoHeretic** · May 19th, 2015, 09:18 AM

Doesn't it also look like one woofer is a 515 and the other is a 416?

**endeeinn** · May 19th, 2015, 09:20 AM

What I see interesting is the use of the 802 without a horn .. just mounted to a mounting plate. Has anyone done this? At what crossover frequency would it be effective?

**Altec Best** · May 23rd, 2015, 05:53 PM

First off I don"t care if it is original or not was just posting as I like it !! It is what got me started with my dual woofer project... I think it is quite interesting and after all it is all ALTEC !

**Elitopus1** · April 21st, 2017, 06:03 PM

Looks like the Rodspeakers are for sale again. Seller says if they don't sell this time he is donating them to the Rock and Roll hall of fame.

1976 Altec RodSpeaker RARE one of a kind vintage cabinets made for Rod Stewart | eBay

**Phil-G** · April 21st, 2017, 06:12 PM

I would just like to hear Rod Stewarts take on all this.

**Elitopus1** · April 21st, 2017, 11:45 PM

Btw I asked the seller about the one different looking woofer. They said "That speaker was the only one of the four that was professionally cleaned by Cerwin Vega".

Hmm. Interesting.

I am also curious what Rod actually did with these speakers. Did they just sit in his house unused? Was it just a promo deal and he never really used them? Maybe he loved them and jammed out every day
